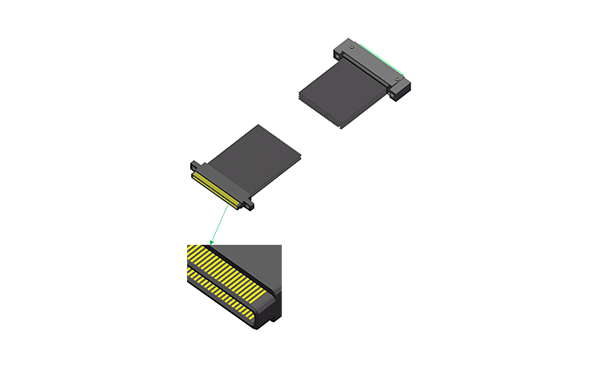

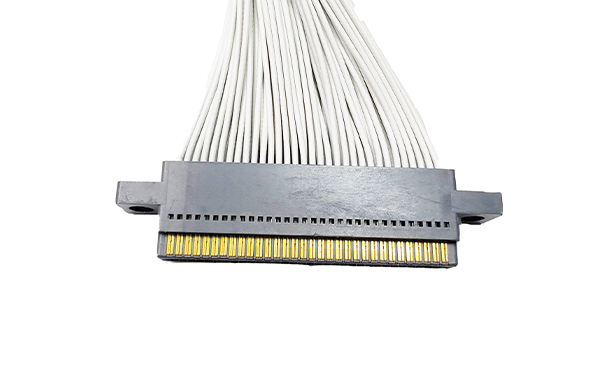

High-speed Connector To PCB Cable Assembly (1.8Ghz)

Features

Data Rate：3.6Gbps

Impedance：50Ω

Insertion Loss：< -2.0dB@1Ghz, @cable 0.6m；< -3.0dB@1.8Ghz, @cable 0.6m

Return Loss：< -20dB@0~1.8Ghz

Rated Voltage：DC 50V

Current：1A/PIN（power）

Withstand Voltage：360VAC

Contact Resistance：≤ 80mΩ

Insulation：1000MΩ

Pin Number：256 Pin /320 Pin

Insertion Force：50N Max.

Extraction Force：15N Min.

Test Life (Connector) ：10,000
